ESI-MCL

NO.DESCRIPTIONPART NO.MCL-6501MCL-6502MCL-6503
1ArmatureMCH-2147•
MCH-2148•
MCH-2151•
2Brush SetMHD-2012S•••
3Field Coil PackageMCL-1005P•
4Frame & Field Assy.MCL-2092S•
MCL-3071S•
5Comm. End Head Assy.MDL-1002•••
6Drive End Head Assy.MCL-2136S•
MDB-1003•
MCL-1137(b)•
7DE BearingML-18A•
MZ-46A•
90-2118(a)•
8Bendix DriveEBB-133(c)•
9Brush Plate AssemblyMFX-1064•••
10Brush Spring SetMZ-19S•••
11Term. Stud Package90-726•••
12Oil SealXA-1024•
XA-560•
90-2118(a)•
13Thru Bolt PackageGJ-20DS•
GJ-20S•
MAJ-20CS•
14Thrust Washer Pkg.90-2677•
90-263•
90-2232•
15ConnectorMZ-144•

NOTES:
A) Bearing & Seal Package
B) 90-2191 DE Heat Mtg. Screw Pkg. (25 pcs.) Also Available.

ESI-MCL

NO.DESCRIPTIONPART NO.MDB-6101
1ArmatureMDB-2148•
2Brush SetMDB-2012BS•
3Frame & Field Assy.MDB-2031S•
4Comm. End Head Assy.MDL-1002•
5DE Head Assy.MDB-1003•
6DE BearingMZ-46A•
7Bendix DriveEBB-133(a)•
8Brush Plate Assy.MDB-1064SS•
9Brush Spring SetMZ-19S•
10Term. Stud Package90-726•
11Oil SealXA-560•
12Thru Bolt PackageGJ-20S•
13Thrust Washer Package90-263•
14ConnectorMZ-144•

NOTES:
A) P90-2139 Bendix Pin Pkg. (25 pc.) Also Available.

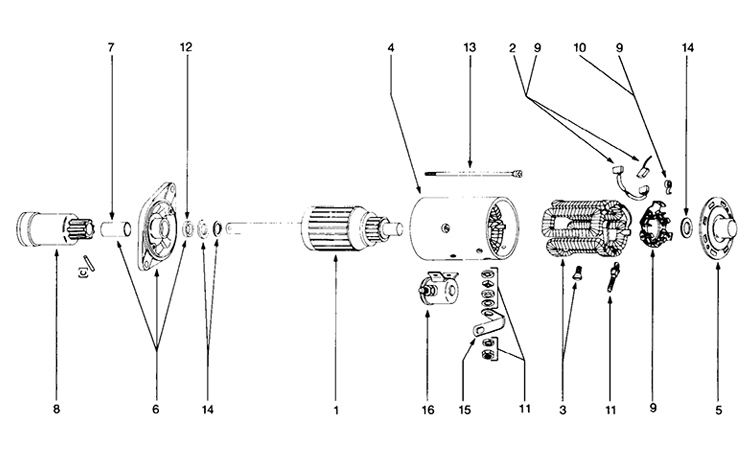

ESI-MHB

NOTES:
a) 90-2140 Bendix Pin Pkg. (25 pcs.) also available.
b) 90-2139 Bendix Pin Pkg. (25 pcs.) also available.
c) PS-1432CS Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-1432C Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
d) PS-1437AS Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-1437A Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
e) PS-2432BS Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-2432B Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
f) PS-1432ES Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-1432E Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
g) MZ-414S DE Mfg. Screw Gasket Pkg. (10 pcs.) also available.
h) 90-2118 Bearing & Seal Pkg.
i) Two used. XA-997 is 1/2″ I.D. and XA-998 is 13/16″ I.D.
j) Complete Assembly and/or Gear Housing available thru Lycoming only.

NO.DescriptionPART NO.MHB-4001MHB-4002MHB-4003MHB-4004MHB-4005MHB-4006MHB-4007MHB-4008MHB-4009MHB-4010MHB-4011MHB-4012MHB-4013MHB-4014MHB-4015MHB-4016MHB-4017MHB-4018MHB-4019
1ArmatureMHB-2399••••••••••••••••
MHB-2383•
MHB_2386•
MHB-2420•
2Brush SetMHB-2012S••••••••••••••
MHB-2012AS•••••
3Frame & Field Assy.MHB-2397•••••••••••••
MHB-2384B•
MHB-2384S••
MHB-2418•
MHB-2397A••
4Comm. End Head Assy.MHB-2400•••••••••••••••
MPB-2002D•
MPB-2002CS••
MHB-2400A•
5C.E. BearingX-3991••••••••••••••••
6Bendix DriveEBB-75A (a)••••••••
EBB-133 (b)•
EBB-142 (a)••
EBB-124A (b)•
EBB-131A (b)••••
7Bendix Drive Shaft(c)•
(d)•
(e)•
(f)••
MZ-326•••••
MZ-326A••••
8DE Head or Pinion Hsg.(c)•
(d)•
(e)•
MZ-1147•
MHB-2137 (g)•
(f)••
PS-1432C••
PS-1437B••
PS-2432B••
PS-1432E•••
PS1435•
9DE Bearing(c)•
(d)•
(e)•
MAB-124•
(h)•
(f)••
MG-77A•
MZ-298•••••••••
10Oil SealXA-560•
(h)•
11GearMZ-396••••••••••••••
12Gear Housing Assy.MZ-1390•••••••••••••••
MHB-1030(j)*•
13Needle Bearing(i)••••••••••••••••
(h)•
14Cover BandMZ-393•••••••••••••••••••
15Brush Spring SetMZ-19S•••••••••••••••••••
16Term. Stud Pkg.90-878•••••••••••••••••••
17Retainer PlateMZ-393••••••••••••••
18Thrust Washer Pkg.90-601••••••••••••••••
90-2677••
90-2232•
19ConnectorMZ-144•

ESI-MHJ

NO.DESCRIPTIONPART NO.MHJ-4002MHJ-4003MHJ-4004MHJ-4005
1AmatureMHJ-2147S••
MHJ-3151S••
2Brush SetMDL-2012ES••
MDZ-2012CS••
3Frame & Field Assy.MEX-2092S•
MEX-2092AS•
MEX-3031••
4Comm. End Head Assy.MDL-1002••••
5DE Head or Pision HousingMCL-2136•
MCL-2136A•
PS-1455•
PS-1455A•
6DE BearingML-18A••
MHJ-36••
7Bendix DriveEBB-124A••
8Bendix Pin Pkg.90-2139••
9Brush Plate AssemblyMDL-1064ES••
MDL-1064GS••
10Brush Spring SetMZ-19S••••
11Term. Stud Pkg.90-726•••
12Oil SealXA-1024••
13Thru Bolt Pkg.GJ-20DS••
GJ-20S••
14Thrust Washer Pkg.90-2677••
90-2232••
15GearMZ-396••
16Gear Housing Assy.MHJ-1045••
17Needle Bearing(a)••
18Retainer PlateMZ-393••
19Bendix Drive ShaftMHJ-44••

NOTES:
A) Two Used (XA-997) 1/2″ I.D. and (XA-998) 13/16″ I.D.

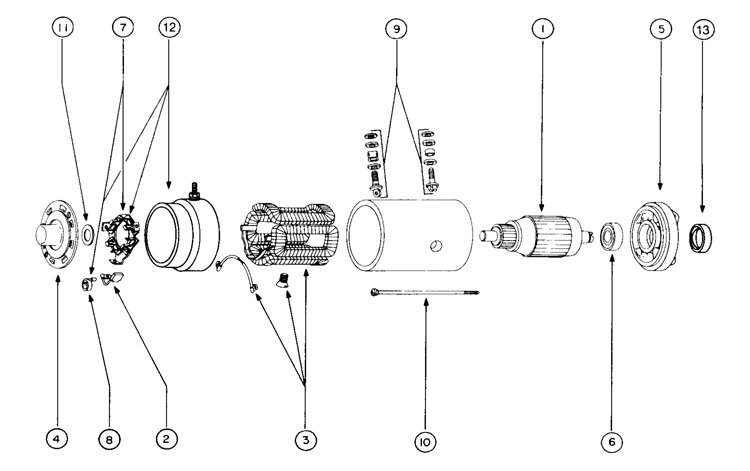

ESI-MHP

NO.DESCRIPTIONPART NO. MHP-4004 MHP-4101
1ArmatureMHJ-3151S•
MHJ-2147S•
2Brush SetMDL-2012ES••
3Frame & Field Assy.MHP-3039AS•
MHP-2101S•
4Comm. End Head Assy.MDL-1002•
MDT-1002•
5Drive End Head Assy.MCL-1137•
MHP-2003•
6Bearing & Seal Package90-2118•
ML-18A•
7Brush Plate Assy.MDL-1064ES•
MDL-1065E•
8Brush Spring SetMZ-19S••
9Term. Stud Package90-726•
90-711•
10Thru Bolt PackageMAJ-20CS•
GJ-20DS•
11Thrust Washer Package90-2232•
90-2677•
12Spacing Ring Assy.MHP-1002•
13Oil Seal90-2118
XA-1024		••

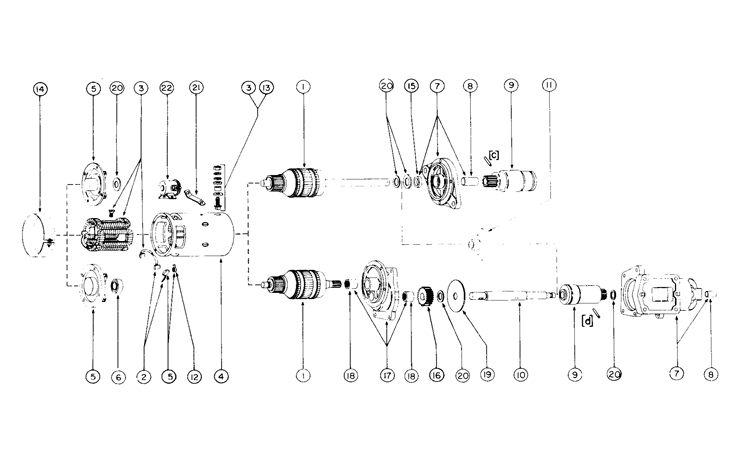

ESI-MHZ

NOTES:
a) PS-2432BS Housing & Shaft Pkg. must be used at time of first repair. Individual components –
PS-2432B Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
b) PS-1432CS Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-1432C Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
c) PS-2432BS Housing & Shaft Pkg. must be used at time of first repair. Individual components -PS-1437B Pinion Housing, MZ-298 Bearing, MZ-326 Bendix Drive Shaft may be replaced thereafter.
d) MZ-414S DE Mounting Screw Gasket Pkg. also available.
e) Bearing & Seal Package
f) 90-2139 Bendix Pin Package (25 pcs.) also available
g) 90-2140 Bendix Pin Package (25 pcs.) also available
h) Not part of this motor; available thru Continental Only #639153
i) Two used – XA997 is 1/2″ I.D. & XA-998 is 13/16″ I.D.
j) Not part of this motor; available thru Continental Only #639153

NO.DESCRIPTIONPART NO.MZ-4203MZ-4204MZ-4205MZ-4206MZ-4207MZ-4208MZ-4214MZ-4216MZ-4217MZ-4218MZ-4219MZ-4220MZ-4221MZ-4222MZ-4223MZ-4224MZ-4225MZ-4226
1ArmatureMZ-2383•
MZ-2386•
MZ-2399•••••••••••••••
MZ-2412•
2Brush SetMZ-2012AS•
MBG-2012S••••••••••••••••
MBG-2012CS•
3Field Coil Assy.MZ-1005AS•
4Frame & Field Assy.MZ-2385S•
MZ-2397S•••••••••••••••
MZ-2022DS•
5Comm. End Head Assy.MZ-2002F•
MZ-2002U•
MZ-2400••••••••••••••
MZ-202VS•
6CE BearingX-3991•••••••••••••••
7DE Head or Pinion HousingMZ-1147•
PS-1435•
(a)•
(b)••
(c)•
MZ-2413(d)•
PS-2432B•••
PS-1432C••••
PS-1437B••
PS-1432F•
8DE BearingMZ-46A•
MG-77A•
(a)•
(b)••
(c)•
90-2018(e)•
MZ-298••••••••••
9Bendix DriveEBB-133(f)•
EBB-124A(f)•
EBB-75A(g)••••••
(h)•
EBB-142A(g)••
EBB-131A(f)••••••
10Bendix Drive Shaft(a)•
(b)••
(c)•
(h)•
MZ-326••••
MZ-326A••••••
11Intermed. Bearing Assy.MZ-1236•
12Brush Spring SetMZ-19S••••••••••••••••••
13Term. Stud Pkg.90-716•
90-877••
90-876•••••••••••••••
14Cover BandMZ-24A••••••••••••••••••
15Oil SealXA-560•
16GearMZ-396••••••••••••••
(j)•
17Gear Housing Assy.MZ-1390••••••••••••••••
18Needle Bearing(i)•••••••••••••••
19Retainer PlateMZ-393••••••••••••••
20Thrust Washer Pkg.90-2677••
90-2271•
90-601•••••••••••••••
21ConnectorMZ-144•
